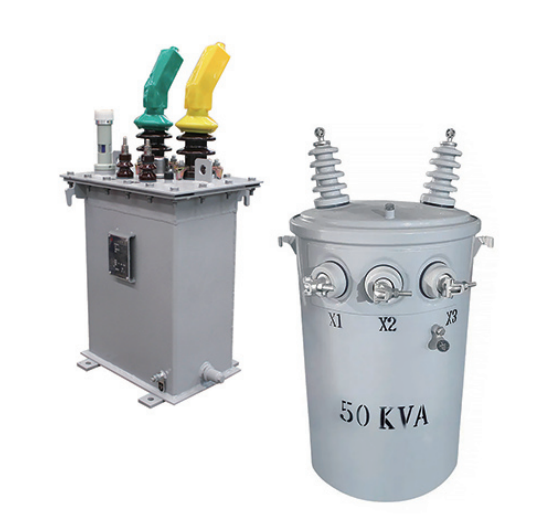

10kV D13 Single-phase oil-immersed transformer

Name: 10kV D13 Single-phase oil-immersed transformer
SKU: 0

Oil-immersed transformers are a series of high-end power transformers designed to meet the stringent requirements of modern power distribution systems. These transformers utilize proven oil-immersion technology, providing superior thermal management, enhanced durability, and reliable performance in a wide range of applications.

Email : admin@admin.com

WhatsApp : +8618999999999

Product Parameters

Products

1. Single-phase distribution transformers are small in size, heavy in weight and light in weight, and can go deep into the load center to the greatest extent, shorten the radius of the low-voltage network and reduce losses.

2. When a three-phase transformer is overloaded, install a single-phase transformer on a suitable branch to transfer load and resolve capacity issues.

3. Fully sealed structure, maintenance-free, and long service life.

Rated Capacity (kVA)	High Voltage (H.V.) (kV)	Low Voltage (L.V.) (kV)	Connection	No-load Loss (W) - D13	On-load Loss (W) - D13	Short-circuit Impedance (%)
5	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	24	130	3.5
10	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	36	235	3.5
16	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	44	330	3.5
20	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	52	385	3.5
30	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	64	560	3.5
40	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	80	700	3.5
50	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	96	855	3.5
63	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	116	1020	3.5
80	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	128	1260	3.5
100	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	152	1485	3.5
125	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	184	1755	3.5
160	6 / 6.3 / 10 / 10.5 / 11	0.22 ~ 0.24	Ii0 / Ii6	232	2130	3.5

Product Application

Products

Packaging and Shipping

Products

FAQ

Products

Q：

Which countries and regions does your company's service cover?

A：

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q：

How long does it take for a customized service to provide an initial solution?

A：

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q：

What is the after-sales response time for overseas projects?

A：

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q：

What is the product warranty period, and what does the warranty cover?

A：

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
