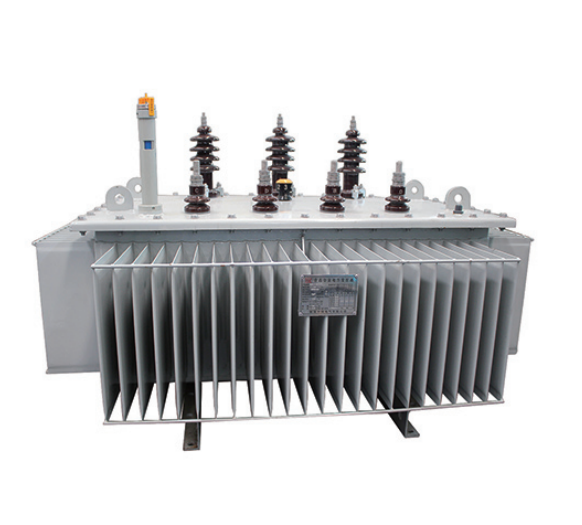

10kV SH15/21/25 Amorphous Alloy Energy Efficiency Transformer

Name: 10kV SH15/21/25 Amorphous Alloy Energy Efficiency Transformer
SKU: 0

Oil-immersed transformers are a series of high-end power transformers designed to meet the stringent requirements of modern power distribution systems. These transformers utilize proven oil-immersion technology, providing superior thermal management, enhanced durability, and reliable performance in a wide range of applications.

Email : admin@admin.com

WhatsApp : +8618999999999

Product Parameters

Products

1.The 10kV SH15/21/25 amorphous alloy transformer features ultra-low no-load loss and high energy efficiency. With oil-immersed fully sealed structure, it operates stably with low noise and long service life for various harsh conditions.

2.Widely used in power distribution networks, industrial & commercial areas, PV, wind power and energy storage stations, it is energy-saving, low-carbon and easy to maintain, ideal for energy-saving renovation and new energy projects.

Rated Capacity (kVA)	High Voltage (H.V.) (kV)	Low Voltage (L.V.) (kV)	Connection	No-load Loss (W) - SH15	No-load Loss (W) - SH21	No-load Loss (W) - SH25	On-load Loss (W) - SH15	On-load Loss (W) - SH21	On-load Loss (W) - SH25	Short-circuit Impedance (%)
30	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	33	33	25	630/600	535/510	510/480	4
50	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	43	43	35	910/870	780/745	735/700	4
63	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	50	50	40	1090/1040	930/890	880/840	4
80	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	60	60	50	1310/1250	1120/1070	1060/1010	4
100	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	75	75	60	1580/1500	1350/1285	1270/1215	4
125	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	85	85	70	1890/1800	1615/1540	1530/1450	4
160	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	100	100	80	2310/2200	1975/1880	1870/1780	4
200	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	120	120	95	2730/2600	2330/2225	2210/2100	4
250	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	140	140	110	3200/3050	2735/2610	2590/2470	4
315	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	170	170	135	3830/3650	3275/3120	3100/2950	4
400	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	200	200	160	4520/4300	3865/3675	3660/3480	4
500	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	240	240	190	5410/5150	4625/4400	4380/4170	4
630	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	320	320	250	6200	5300	5020	4.5
800	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	380	380	300	7500	6415	6075	4.5
1000	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	450	450	360	10300	8800	8340	4.5
1250	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	530	530	425	12000	10260	9720	4.5
1600	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	630	630	500	14500	12400	11745	4.5
2000	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	720	710	550	18300	14800	14000	4.5
2500	6.0 / 6.3 / 10 / 10.5 / 11	0.4	Dyn11 / Yyn0	865	860	670	21200	16300	15450	5

Product Application

Products

Packaging and Shipping

Products

FAQ

Products

Q：

Which countries and regions does your company's service cover?

A：

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q：

How long does it take for a customized service to provide an initial solution?

A：

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q：

What is the after-sales response time for overseas projects?

A：

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q：

What is the product warranty period, and what does the warranty cover?

A：

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
