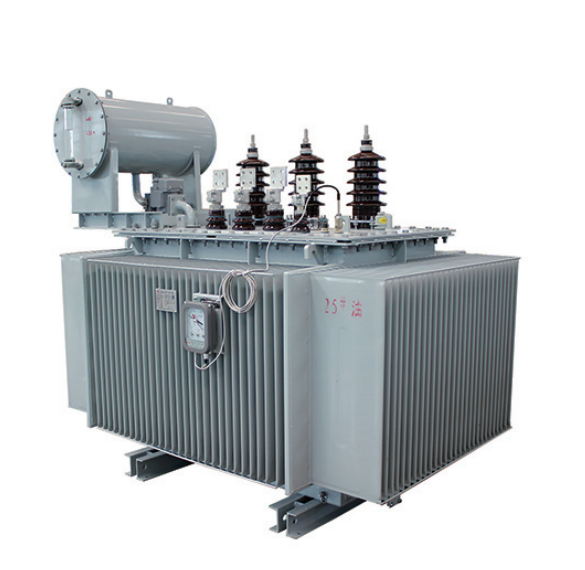

35kVS11/13 Oil-immersed transformer

Name: 35kVS11/13 Oil-immersed transformer
SKU: 0

Oil-immersed transformers are a series of high-end power transformers designed to meet the stringent requirements of modern power distribution systems. These transformers utilize proven oil-immersion technology, providing superior thermal management, enhanced durability, and reliable performance in a wide range of applications.

Email : admin@admin.com

WhatsApp : +8618999999999

Product Parameters

Products

1. The 35kV three-phase oil immersed transformer is used to directly reduce the 35kV grid power supply to 400V distribution power supply for users.

2. High-quality silicon steel sheets are used, lowering magnetic flux density and reducing magnetostriction, which effectively cuts down noise.

3, High-voltage,low-current transmission replaces low-voltage,high-current methods,reducing line loss and operational costs.

Rated Capacity (kVA)	High Voltage (H.V.) (kV)	Low Voltage (L.V.) (kV)	Connection	No-load Loss (kW) - S11	No-load Loss (kW) - S13	On-load Loss (kW) - S11	On-load Loss (kW) - S13	Short-circuit Impedance (%)
50	35 / 38.5	0.4	Dyn11 / Yyn0	0.16	0.112	1.20 / 1.14	1.20 / 1.14	6.5
100	35 / 38.5	0.4	Dyn11 / Yyn0	0.23	0.161	2.01 / 1.91	2.01 / 1.91	6.5
125	35 / 38.5	0.4	Dyn11 / Yyn0	0.27	0.189	2.37 / 2.26	2.37 / 2.26	6.5
160	35 / 38.5	0.4	Dyn11 / Yyn0	0.28	0.196	2.82 / 2.68	2.82 / 2.68	6.5
200	35 / 38.5	0.4	Dyn11 / Yyn0	0.34	0.238	3.32 / 3.16	3.32 / 3.16	6.5
250	35 / 38.5	0.4	Dyn11 / Yyn0	0.4	0.28	3.95 / 3.76	3.95 / 3.76	6.5
315	35 / 38.5	0.4	Dyn11 / Yyn0	0.48	0.336	4.75 / 4.53	4.75 / 4.53	6.5
400	35 / 38.5	0.4	Dyn11 / Yyn0	0.58	0.406	5.74 / 5.47	5.74 / 5.47	6.5
500	35 / 38.5	0.4	Dyn11 / Yyn0	0.68	0.476	6.91 / 6.58	6.91 / 6.58	6.5
630	35 / 38.5	0.4	Dyn11 / Yyn0	0.83	0.581	7.86	7.86	6.5
800	35 / 38.5	0.4	Dyn11 / Yyn0	0.98	0.686	9.4	9.4	6.5
1000	35 / 38.5	0.4	Dyn11 / Yyn0	1.15	0.805	11.5	11.5	6.5
1250	35 / 38.5	0.4	Dyn11 / Yyn0	1.4	0.98	13.9	13.9	6.5
1600	35 / 38.5	0.4	Dyn11 / Yyn0	1.69	1.183	16.6	16.6	6.5
2000	35 / 38.5	0.4	Dyn11 / Yyn0	1.99	1.393	19.7	19.7	6.5
2500	35 / 38.5	0.4	Dyn11 / Yyn0	2.36	1.652	23.2	23.2	6.5

Product Application

Products

Packaging and Shipping

Products

FAQ

Products

Q：

Which countries and regions does your company's service cover?

A：

Our services cover key global regions, including Asia (China, Thailand, Malaysia, etc.), Europe (Germany, France, Italy, etc.), North America (United States, Canada), as well as South Africa, Australia, Brazil, and other regions. We can provide targeted service support according to customer needs.

Q：

How long does it take for a customized service to provide an initial solution?

A：

Upon receiving a client's customized request, our professional team will communicate with them within 24 hours to clarify specific requirements (such as technical parameters, scenario adaptation, etc.). A preliminary customized solution can usually be provided within 3-5 business days. For complex requirements, we can negotiate to extend the timeframe and keep the progress in sync.

Q：

What is the after-sales response time for overseas projects?

A：

The timeframe varies depending on the region: 24 hours for countries in neighboring Asia, 48 hours for Europe and North America, and 72 hours for other regions such as South Africa and Australia. Special and urgent projects can be expedited upon negotiation.

Q：

What is the product warranty period, and what does the warranty cover?

A：

The warranty period for standard products is 1 year, and for core components it can be extended to 2 years (subject to the contract agreement). The warranty covers product quality issues, repairs and replacement of spare parts for malfunctions under normal use, but does not cover damage caused by human error or force majeure.
